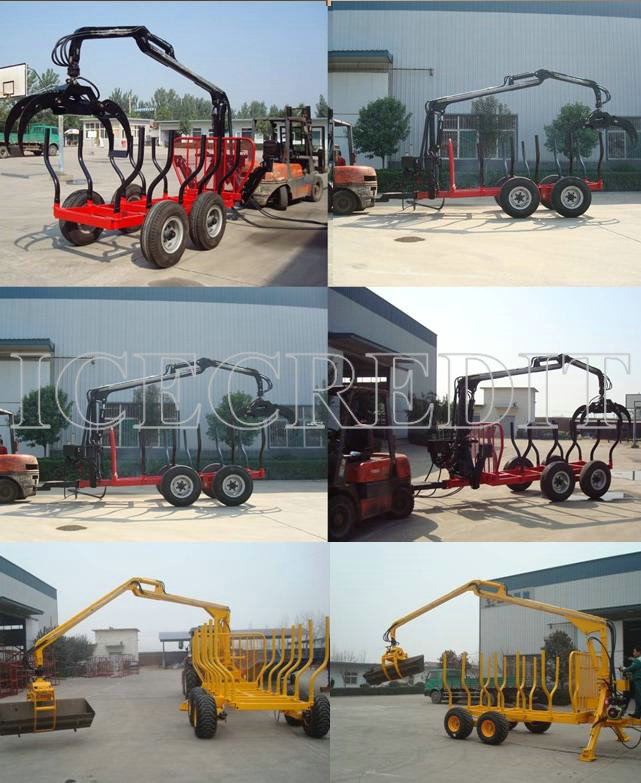

TIMBER TRAILER
Product Description:
SPECIFICATION
| MODEL | IZM1002 | IZM3004 | IZM5004 | IZM8006 | |
| MATCHING TRACTOR OR ATV | KW(HP) | 7.4-14.7(10-20) | 14.7-29.4(20-40) | 36.8-44.1(50-60) | 51.5-58.8(70-80) |
| NET WEIGHT | KG | 600 | 1200 | 1500 | 1800 |
| TRAILER MODEL | ITR10 | ITR30 | ITR50 | ITR80 | |
| LOAD CAPACITY | KG | 1000 | 3000 | 5000 | 8000 |
| LOAD AREA | M² | 0.5 | 1 | 1.6 | 2.3 |
| TOTAL LENGTH | M | 3.6 | 5.1 | 5.1 | 5.7 |
| TRAILER LOADING LENGTH | M | 2 | 3.1 | 3.1 | 3.7 |
| TOTAL WIDTH | M | 1.3 | 1.5 | 1.8 | 2.2 |
| CRANE MODEL | ICR02 | ICR04 | ICR04 | ICR06 | |
| GRAPPING MINI DIAMETER | MM | 75 | 75 | 75 | 75 |
| GRAPPING AREA | M² | 0.18 | 0.28 | 0.28 | 0.28 |
| REACH MAX. | M | 3.5 | 4.3 | 4.3 | 6 |
| LIFT CAPACITY, KG/M(OUTREACH) | 400/2,300/3, 200/3.5 | 1280/2,760/3, 500/4,450/4.3 | 1280/2,760/3, 500/4,450/4.3 | 1280/2,760/3,500/4, 340/5,240/6 | |
| SLEWING ANGLE | 400 | 400 | 400 | 400 |
PERFORMANCE
* It's used in loading, unloading, transporting, stacking and unstacking of wood, grass and reed, bamboo etc.
* Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation, quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are highly standardized, convenient for operation and maintenance.
